Answer: A wall mount split system bracket is the essential mounting solution for outdoor mini-split AC units, heat pumps, and condensers. This guide highlights heavy-duty brackets that maximize stability, minimize vibration, and protect outdoor equipment. The top products below are best for DIY installers and HVAC pros seeking sturdy, corrosion-resistant supports for 7,000 to 36,000 BTU systems. The introduction includes a quick buyer table to compare a selection of options.
| Product | BTU Range | Max Weight Capacity | Best For |
|---|---|---|---|
| Toutgood | 7,000–12,000 | 400 lb | Medium-size outdoor units with long-term weather exposure |
| Ogival | 9,000–18,000 | 330 lb | Versatile sizes; outdoor mounting |
| HIODIYI (550 lb) | 9,000–36,000 | 550 lb | Large outdoor condenser units |
| Liamoy | 7,000–18,000 | 270 lb | Budget-friendly universal brackets |
| Delmoar | 7,000–18,000 | 270 lb | Universal outdoor mounting |
Toutgood Mini Split Wall Mounting Bracket
The Toutgood wall bracket is built for outdoor use and supports up to 400 pounds, suitable for 7000–12000 BTU systems. Its galvanized construction with powder coating resists corrosion and rust, making it a durable choice for long-term outdoor installation. The adjustable crossbar supports leveling, facilitating secure mounting on varied wall surfaces.
Best for: Medium-size outdoor units that require strong weight capacity and weather resilience. Better for installations where a stable, level condenser is essential. Caution: ensure wall structure can bear the full weight plus dynamic loads during operation.
Ogival Outdoor Mini Split Wall Mounting Bracket
This bracket supports 9,000–18,000 BTU units and holds up to 330 pounds. Constructed from cold-rolled steel with a rust-resistant powder coating, it is designed to withstand outdoor environments. It also elevates the condenser to protect against ground-level debris and moisture, extending operating life.
Best for: Units in the mid-to-large range where outdoor durability and debris protection matter. Choose this if you need a versatile size range. Caution: check exact wall spacing and ensure the bracket aligns with your condenser’s mounting feet.

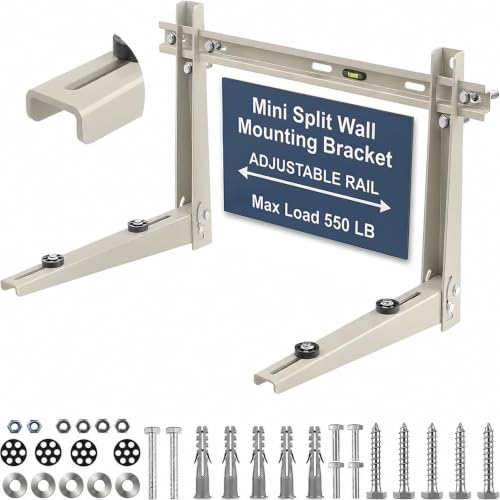

HIODIYI Heavy Duty Mini Split Wall Mounting Bracket (550 lb)
This heavy-duty bracket supports up to 550 pounds and fits 9,000–36,000 BTU systems. It uses galvanized steel with anti-rust coating and features an adjustable crossbar for precise leveling. Designed for outdoor use, it resists corrosion and helps keep the condenser stable in windy conditions.
Best for: Very large outdoor units or installations where extra factor-of-safety is preferred. Better for long-term outdoor exposure. Caution: ensure the wall and anchors are rated for higher loads to avoid overloading the mounting surface.
Liamoy Mini Split Wall Mounting Bracket
The Liamoy bracket provides universal compatibility for many mini split units from 7,000 to 18,000 BTU, supporting up to 270 pounds. It features galvanized steel with epoxy paint and an L-bracket design with horizontal arms for strong, stable support. It also emphasizes perpendicular alignment during condenser leveling to protect the unit from ground-level debris.
Best for: Budget-conscious installations needing reliable universal support. Choose this if you’re mounting a mid-sized condenser and want straightforward alignment. Caution: weight near the limit may reduce long-term stability in high-wind areas.
JEACENT Mini Split Bracket
The JEACENT universal bracket supports 7,000–15,000 BTU units and up to 280 pounds. It features a galvanized steel frame with epoxy coating, two assembly methods, and a rubber damper for vibration reduction. It emphasizes accurate perpendicular alignment to maintain airflow and condenser clearance.
Best for: Installations where precise leveling and reduced vibration are priorities. Choose this if you value dual assembly options. Caution: ensure the included hardware fits your wall type and condenser feet pattern.
Delmoar Mini Split Wall Mount Bracket
The Delmoar universal bracket supports 7,000–18,000 BTU units with a 270-pound capacity. It uses a heavy-duty steel construction and provides a robust mounting platform for outdoor condensers. Its design highlights perpendicular alignment and ground clearance to protect against moisture and debris.
Best for: Homeowners seeking a versatile, affordable option for a range of BTU sizes. Avoid this if you install a unit near structural limitations that can’t support 270 pounds safely.
Buying Guide
What should I consider when choosing a wall mount bracket?
Key factors include BTU compatibility, weight capacity, and wall compatibility. Ensure the bracket can support the condenser’s weight plus dynamic loads during operation. Check wall material and anchor options to ensure reliable mounting on brick, concrete, or wood.
What about durability and outdoor conditions?
Look for galvanized steel with anti-rust coatings or powder-coated finishes for outdoor resilience. Corrosion resistance protects brackets from rain, humidity, and salt exposure in coastal areas.
How important is leveling and vibration control?
Adjustable crossbars and rubber dampers improve leveling and reduce operational vibration. Perpendicular alignment helps maintain proper condenser clearance for airflow and debris avoidance.
Which bracket is best for DIY vs. professional installation?
DIY-friendly brackets feature straightforward mounting hardware and leveling aids. More complex systems with multiple mounting options or heavy loads may benefit from professional installation to ensure safety and compliance with local codes.
Are universal brackets suitable for all brands?
Universal brackets offer broad compatibility but verify mounting hole patterns and foot spacing for your unit. Some condensers have unique feet configurations that may require adapters or alternative brackets.
FAQ
- How much weight can a typical mini split wall bracket support? Most brackets support between 270–550 pounds, depending on the model.
- Can I install a bracket on wooden siding or just concrete walls? Concrete or brick walls provide the strongest anchor points; wood can be used with proper fasteners and stud placement.
- Do brackets affect outdoor unit efficiency? Proper mounting maintains level operation and prevents vibration, which supports longevity and airflow efficiency.
- Should I hire a professional? For larger BTU units or uncertain wall structures, professional installation is recommended to ensure safety and code compliance.
- What maintenance is needed after installation? Periodically inspect anchors, crossbars, and rubber dampers for wear, and clear any debris around the condenser to maintain airflow.
