Choosing the right drop-in filter drier for R22 and other common refrigerants is essential to protect HVAC/R systems from moisture, acids, and contaminants. The following selections are universal, easy to install, and designed to work with a wide range of refrigerants including R22, R134a, and R410A. This guide highlights five reliable options to help technicians and homeowners maintain system reliability and efficiency.
| Product | Key Benefit | Connection Type | Size/Weight Notes |
|---|---|---|---|
| APFL DP082 | Universal drop-in replacement for most driers | SAE Flare | 1/4 in |
| APFD-033 | Protects against acid and humidity | SAE Flare | 3/8 in |
| APFD-083S | ODF Sweat Solder connection | Solder | 3/8 in |
| APFD-082S | ODF Sweat Solder connection | Solder | 1/4 in |
| Danfoss Dcl032 | Solid core with molecular sieve | Flare | 1/4 in |
Note: All products listed support moisture removal and acid capture, with a focus on compatibility across common refrigerants including R22 and its substitutes. Installation typically involves standard refrigerant line work and proper evacuation before use. When selecting a model, verify the flare or solder connection type that matches your system’s service ports and the available space for the drier body.
Appli Parts APFD-082: 1/4 In Filter Drier
Universal, drop-in replacement designed for refrigeration, air conditioning, and heat pump refrigerant lines. It helps protect HVAC/R systems from acid and humidity. Operating range spans from -40F to 160F (-40C to 70C). The core is a 100% solid molecular sieve to ensure humidity removal. Compatible with refrigerants including R22, R134a, R1234yf, R290, R407c, R404a, R507a, R600, and more.

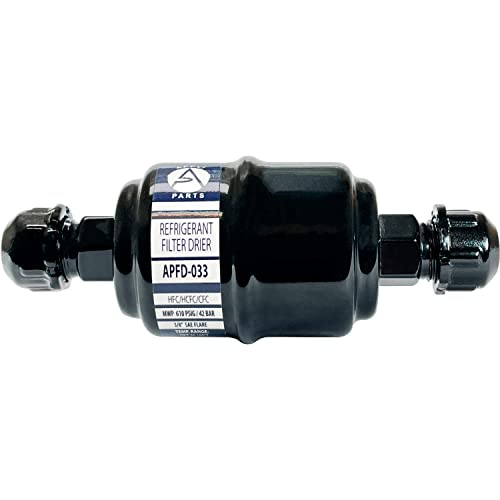

Appli Parts APFD-033: 3/8 In Filter Drier
Universal, drop-in replacement for driers in refrigeration, air conditioning, and heat pumps. Designed to protect HVAC/R systems from acid and humidity. Temperature range from -40F to 160F. Core uses 100% solid molecular sieve to remove moisture. Compatible with multiple refrigerants, including R22 and common blends.
Appli Parts APFD-083S: 3/8 In ODF Sweat Solder
ODF Sweat Solder connection version for 3/8 in lines. This drop-in drier protects HVAC/R systems by removing moisture and adsorbed acids. Operating temp range is wide, with a molecular sieve core that ensures thorough humidity removal. Compatible with R22 and other common refrigerants used in the field.
Appli Parts APFD-082S: 1/4 In ODF Sweat Solder
1/4 in Sweat Solder ODF version for easy installation in compact lines. Maintains humidity control with a 100% solid molecular sieve core. Suitable for a range of refrigerants including R22, and offers robust protection against acid formation in refrigeration systems.
Danfoss Dcl032 1/4 Flare
Solid bronze inlet and outlet flare connections with a molecular sieve-based core (80% molecular sieve, 20% activated alumina) to adsorb moisture and capture acid. Temperature range from -40F to 160F. This filter drier offers reliable drop-in performance for a variety of HVAC/R systems, including those running R22 and similar refrigerants.
Appli Parts APFD-414S: 1/2 In Drier, 9.5 In Long
Long-bodied 1/2 in line drier with 9.5 inches in length and 3.5 inches width. It provides universal compatibility as a drop-in replacement in many refrigeration and air conditioning systems. The core is a 100% solid molecular sieve designed to absorb moisture and trap acids, supporting refrigerant stability across R22-based applications.
Buying Guide: Key Purchase Considerations For R22 Systems
When selecting a filter drier for R22 or other refrigerants, consider the following perspectives:
- Connection Type: Choose between SAE flare and ODF sweat/Solder connections based on your system’s service ports and ease of installation. Ensure the chosen model matches the service ports to avoid adapters.
- Core Composition: Look for a molecular sieve core (often with activated alumina) that provides efficient moisture removal and acid scavenging to protect refrigerants and lubricants.
- Capacity and Size: Larger bodies may handle higher moisture loads and longer service intervals, but ensure fitment within the available space in the equipment cabinet or along the piping.
- Temperature Range: Verify the operating temperature range aligns with ambient and system operating temperatures to prevent performance degradation.
- Refrigerant Compatibility: Confirm the drier is compatible with R22, R134a, R1234yf, R404A, R407C, and other refrigerants used in your system, including legacy and retrofit options.
- Quality of Inlet/Outlet Ports: Durable flare connections or welded joints reduce leaks and improve long-term reliability in maintenance cycles.
- Installation Best Practices: Evacuate and vacuum the system following replacement to remove moisture and non-condensables. Follow safety and refrigerant-handling guidelines per local regulations.
- Maintenance Interval: Consider projected moisture load and operating conditions to determine replacement frequency. Systems with more moisture exposure may require earlier replacement.
Depth of field considerations include evaluating whether to use a standard drop-in drier versus an extended body model for larger circuit runs. For tight spaces, compact 1/4 or 3/8 inch models may be preferable, while longer bodies offer higher moisture absorption capacity for demanding service lifespans. Selecting the right drier is a balance between fit, compatibility, and the environmental conditions of the system.
